Metal Injection Molding Revolutionizing the Defence Industry
Metal Injection Molding (MIM) is leading advancements in the production of defence components, offering a unique combination of versatility, strength, and precision. With a diverse range of advanced materials from INDO-MIM, including MIM SS 420, MIM 4340, MIM 4140, MIM 8620, MIM SS 17-4PH, MIM 4600, MIM 4600 modified, MIM S7, MIM 9310, MIM 4605, and MIM 4630 modified, the defence industry is experiencing unprecedented progress in manufacturing capabilities, enabling the creation of intricate, high-performance parts crucial for military applications.
| Material Category | Material Name | Properties | Application |
|---|---|---|---|
| Martensitic Stainless Steel | INDO-MIM SS 420 |
Corrosion resistance, high strength, and hardness. Hardness: 42 HRC typ UTS:Â Â Â Â Â Â Â 1450 MPa YS:Â Â Â Â Â Â Â Â Â Â 1150 MPa |
Slide stop, Thumb Safety,
Ejector, Sear |
| Martensitic Stainless Steel | INDO-MIM SS 17-4 PH | Corrosion resistance, high strength, and hardness.
Hardness: 35 – 43 HRC UTS:Â Â Â Â Â Â Â 1220 MPa YS:Â Â Â Â Â Â Â Â Â Â 1100 MPa |
Module blank,
Levers, Housing gripper |
| Medium Carbon Low Alloy Steel | INDO-MIM 4340 | Strength, toughness, and wear resistance
Hardness: 32 – 50 HRC UTS:Â Â Â Â Â Â Â 1500 MPa YS:Â Â Â Â Â Â Â Â Â Â 1350 MPa |
Guide rails,
Slide catch, Bolt carrier, Sight |
| Medium Carbon Low Alloy Steel | INDO-MIM 4140 | Strength, toughness, and wear resistance
Hardness: 32 – 50 HRC UTS:Â Â Â Â Â Â Â 1550 MPa YS:Â Â Â Â Â Â Â Â Â Â 1400 MPa |
Mount bracket,
Blocking pin |
| Medium Carbon Low Alloy Steel | INDO-MIM 4605 | Strength, toughness, and wear resistance
Hardness: 32 – 50 HRC UTS:Â Â Â Â Â Â Â 1550 MPa YS:Â Â Â Â Â Â Â Â Â Â 1400 MPa |
Trigger, Barrel bush,
Safety Lever |
| Low Carbon Low Alloy Steel | INDO-MIM 9310 | Enhanced strength and toughness
Hardness: 375 HV1 (Can be case hardened to 600 – 750 HV1 at surface) UTS:       540 MPa YS:          350 MPa |
Hammer, Trigger, Sear |
| Low Carbon Low Alloy Steel | INDO-MIM 8620 | Enhanced strength and toughness
Hardness: 50 HRB (Can be case hardened to 600 – 750 HV1 at surface) UTS:       320 MPa YS:          130 MPa |
Cane |
| Tool Steel | INDO-MIM S7 | Shock-resistant tool steel. Exceptional toughness and wear resistance.
Hardness: 45 – 53 HRC UTS:       1750 MPa YS:          1530 MPa |
Locking insert,
Firing pin, Hammer |
| Higher Nickel Steel | INDO-MIM 4630 Modified | Nickel-rich steels for high-temperature strength and thermal stability.
Hardness: 35 – 50 HRC UTS:Â Â Â Â Â Â Â 1500 MPa YS:Â Â Â Â Â Â Â Â Â Â 1200 MPa |
Bolt catch, Extractor, Retainer |
| Higher Nickel Steel | INDO-MIM 4600 Modified | Nickel-rich steels for high-temperature strength and thermal stability.
Hardness: 300 HV1 (can be case hardened to 500 – 600 HV1 at surface) UTS:       425 MPa YS:          300 MPa |
Sear housing, Magazine catch, Trigger |
The versatility of MIM extends to its ability to produce complex geometries with tight tolerances, reducing post-processing needs and ensuring precise functionality in critical situations. This capability is invaluable in defence manufacturing, where components must meet stringent performance requirements.
Cost-effectiveness is another key advantage of MIM materials, offering significant savings compared to traditional manufacturing methods. Mass-producing intricate parts in a single operation reduces production time and labour costs, making MIM an attractive option for defence contractors seeking efficiency without compromising quality.
Innovation thrives with MIM materials, enabling rapid prototyping and customization of defence components. Additive manufacturing techniques combined with MIM facilitate the exploration of novel geometries and material compositions, pushing the boundaries of performance and functionality in military hardware.
Quality control and material selection remain paramount in ensuring the reliability of MIM-produced components for defence applications. Rigorous testing and process optimization are essential to guarantee consistency and performance under demanding conditions.

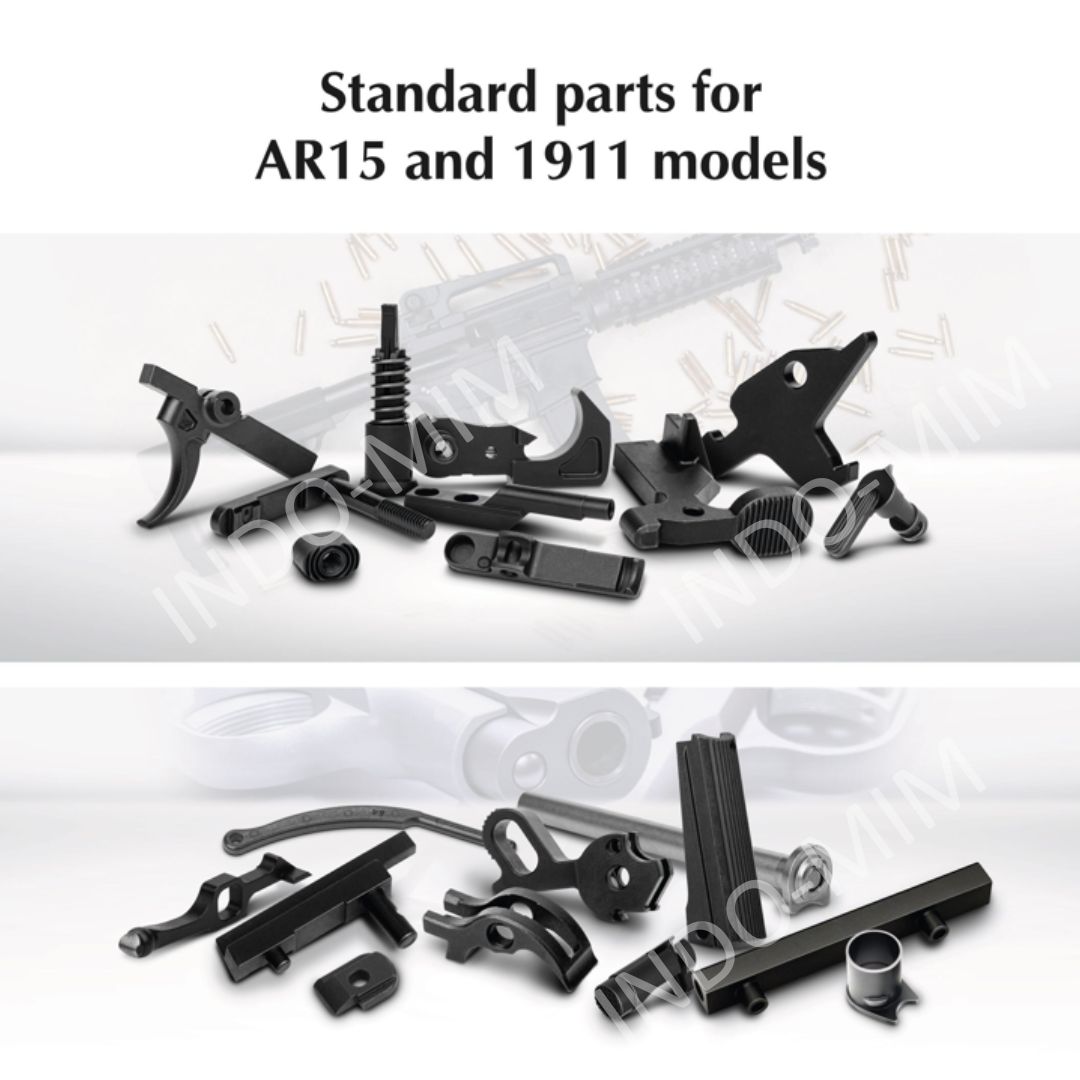

INDO-MIM developed and shipping different varieties of parts which are used in Pistols, Rifle, Assault rifle, Revolvers, Shotguns, Submachine gun, Machine gun, Automatic rifle etc
In conclusion, Metal Injection Molding is driving innovation in defence manufacturing with a diverse range of materials. From corrosion resistance and high strength to enhanced toughness and thermal stability, MIM materials offer properties critical for military applications. By leveraging the unique capabilities of MIM, defence contractors can develop high-performance, cost-effective solutions that meet the rigorous demands of modern warfare.
